| Additional Information | : | 0.03 in THK Tube Wall |
| Connection Size 1 | : | 1/4 in |
| Connection Size 2 | : | 1/8 in |
| Connection Type 1 | : | OD Tube |
| Connection Type 2 | : | MIP |
| Connection Type | : | Tube|MIP |
| Dimensions | : | 1.14 in L |
| Finish | : | Rough |
| Fitting Type | : | Adapter |
| For Use With | : | Aluminum, Copper and Plastic Tubes |
| Hex Size | : | 7/16 in |
| Material Construction | : | Brass |
| Material | : | Brass |
| Pressure Rating | : | 300 psi |
| Series | : | 68X Series |
| Temperature Rating | : | -65 to 250 deg F |

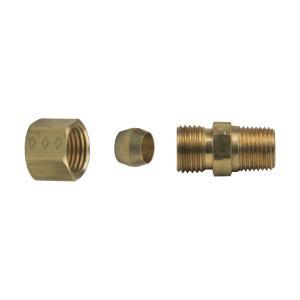

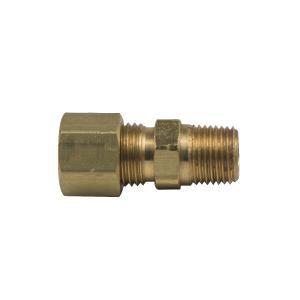

BrassCraft® compression adapter is machined from brass. Compression fittings are ideal for use in plumbing, instrumentation, hydraulic and pneumatic systems (gasoline, grease, oil, potable and non-potable water, vacuum and air lines). Can be used to install copper, aluminum or plastic tubing. Not recommended for use with steel tubing.
BrassCraft® Compression Male Reducing Adapter, 68X Series, Adapter Fitting, Connection Size 1: 1/4 in, Connection Type 1: OD Tube, Connection Size 2: 1/8 in, Connection Type 2: MIP, Tube|MIP Connection, Brass, Material Construction: Brass, Finish: Rough, 7/16 in Hex, For Use With: Aluminum, Copper and Plastic Tubes, 1.14 in L, 300 psi, -65 to 250 deg F, Additional Information: 0.03 in THK Tube Wall
- One-piece brass body provides strength, durability and longer-lasting performance
- Not recommended for steel tubing
- Little to no tube preparation required
- Connection does not require flaring, soldering or other types of tube preparation
- Plastic and PEX tubing installations require sleeves and/or inserts
