| Actuator Type | : | Multi-Turn Handle |
| Additional Information | : | Angled Configuration, Lead-Free, Water Media, Water Service |
| Body Material | : | Brass |
| Connection Type | : | FIP x Compression |
| Dimensions | : | 2.1 in H x 2.54 in W |
| Domestic/Import | : | Domestic |
| Finish | : | Chrome-Plated |
| Handle Material | : | Metal |
| Nominal Size | : | 3/8 in |
| Pressure Rating | : | 125 psi |
| Softgoods Material | : | Rubber |
| Temperature Rating | : | 40 to 140 deg F |
| Trim Material | : | Brass |

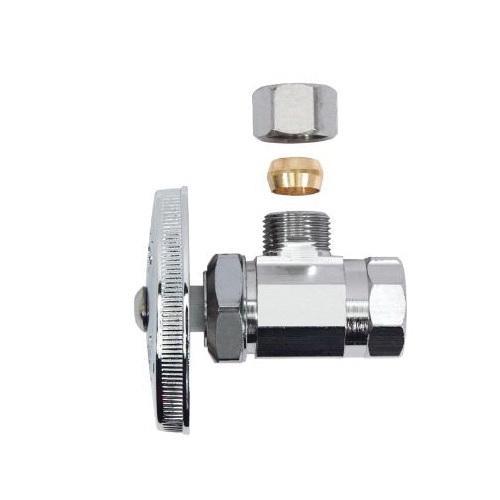

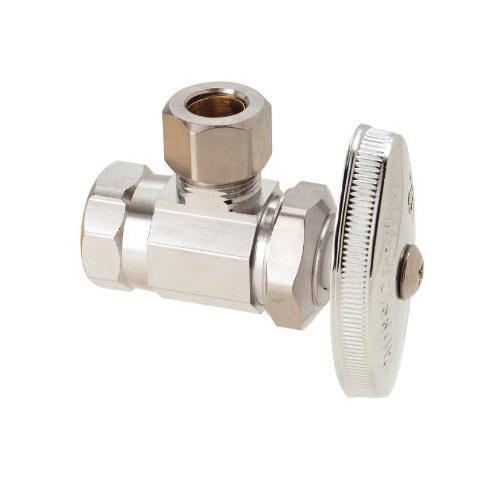

BrassCraft® 3/8 in FIP inlet x 3/8 in OD compression outlet multi-turn angle valve controls water flow to household plumbing fixtures, faucets, toilets, dishwashers, icemakers, washing machines and more. The angle valve is most often used where the water pipe enters the room from the wall. With a few turns of the valve handle, you are able to stop the flow of water leading to the plumbing fixture, allowing for maintenance and repair without turning-off water to the entire home.
BrassCraft® Stop Valve, 3/8 in Nominal, FIP x Compression Connection, 125 psi, Brass Trim, Rubber Softgoods, Brass Body, Metal Handle, Multi-Turn Handle Actuator, Finish: Chrome-Plated, 40 to 140 deg F, 2.1 in H x 2.54 in W, Domestic/Import: Domestic, Additional Information: Angled Configuration, Lead-Free, Water Media, Water Service
- Machined one-piece brass body provides strength, durability and long-lasting performance
- Oval knurled handle provides a secure grip and smooth on/off operation
- Easy-to-remove handle with screw attachment helps protect against accidental stop operation during rough-ins
- Multi-turn operation means water flow control with only a few turns of the handle
- Compatible with iron pipe
- Rubber bib and packing washer, brass packing nut, compression nut and sleeve, zinc-plated steel handle screw
