| AFUE Rating | : | 95 % |
| Amperage Rating | : | <12 A |
| BTU Rating | : | 153000 MBtu/hr DHW, 125000 MBtu/hr Heating |
| Capacity | : | 0.95 gal |
| Chimney/Breeching/Vent Size | : | 3.93 in Dia |
| Connection Type | : | 3/4 in Sweat Supply/Return, 3/4 in FPT Gas Heating Mode, 1/2 in Sweat Inlet and Outlet DHW Mode |
| Dimensions | : | 30 in H x 17-23/32 in W x 13-19/32 in D |
| Frequency Rating | : | 60 Hz |
| Fuel Type | : | Liquid Propane Gas, Natural Gas |
| Ignition Type | : | Direct Spark Ignition with Separate Flame Sensing Rod |
| Material | : | 316L Stainless Steel Heat Exchanger/Burner |
| Mounting Type | : | Wall |
| Net BTU Rating | : | 98000 MBtu/hr |
| Phase | : | 1 ph |
| Power Rating | : | 142 W |
| Series | : | DCC Series |
| Vent Type | : | Direct Exhaust |
| Voltage Rating | : | 120 VAC |

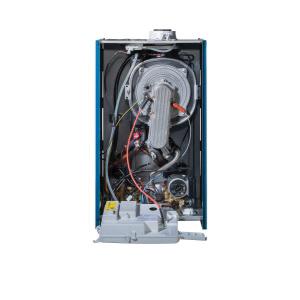

Dunkirk® Boiler, DCC Series, 120 VAC, <12 A, 142 W Power, 60 Hz Frequency, 1 ph, 95 % AFUE, 153000 MBtu/hr DHW, 125000 MBtu/hr Heating BTU, 0.95 gal Capacity, 3/4 in Sweat Supply/Return, 3/4 in FPT Gas Heating Mode, 1/2 in Sweat Inlet and Outlet DHW Mode Connection, Liquid Propane Gas, Natural Gas Fuel, Direct Exhaust Vent, Chimney/Breeching/Vent Size: 3.93 in Dia, Direct Spark Ignition with Separate Flame Sensing Rod Ignition, Net BTU Rating: 98000 MBtu/hr, Wall Mounting, 316L Stainless Steel Heat Exchanger/Burner, Dimensions: 30 in H x 17-23/32 in W x 13-19/32 in D
- Boiler with artificial Intelligence control technology
- 95% efficient and meets the criteria for energy star 2017 most efficient
- 7:1 gas modulation in combination mode
- 5.7:1 gas modulation in heating mode
- Auto commissioning and continuous calibration functions optimize combustion and result in lower fuel bills
- Features 316L stainless steel heat exchanger and burner
- Features such as, high limit sensors, pressure relief valve, low water sensor, and system pressure gauge ensure safety and top performance of the unit
- Control panel features a backlit digital display that indicates boiler status, temperature, and diagnostics
- Pre-heat function
- Built-in 2-speed pump contributes to savings in electrical usage
- Connections for an indirect tank
- Recognizes natural or LP gas
- Automatically sets up the boiler during initial start-up
- Stainless steel domestic hot water heat exchanger with 3.5 gal/min flow rate at 70 deg F rise
- Factory wired 3 ft appliance cord with male plug end
