| Amperage Rating | : | 0.8 A |
| Dimensions | : | 8 in L x 7-1/2 in W |
| Frequency Rating | : | 60 Hz |
| Power Rating | : | 45 W |
| Size | : | 8 in |
| Speed Rating | : | 3000 rpm |
| Temperature Rating | : | 160 deg F |
| Voltage Rating | : | 120 V |

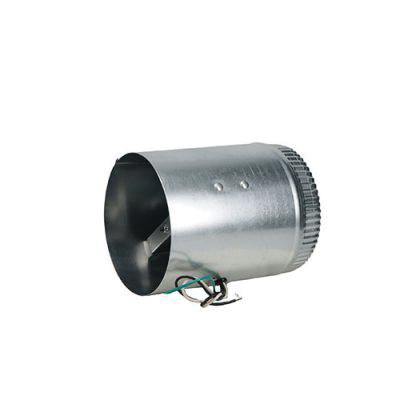

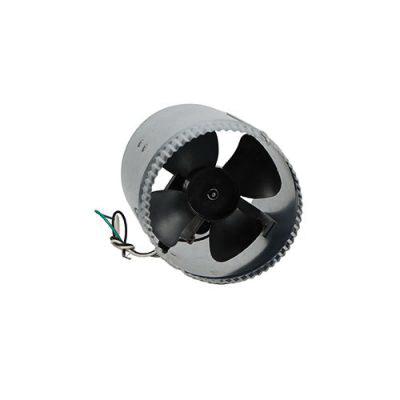

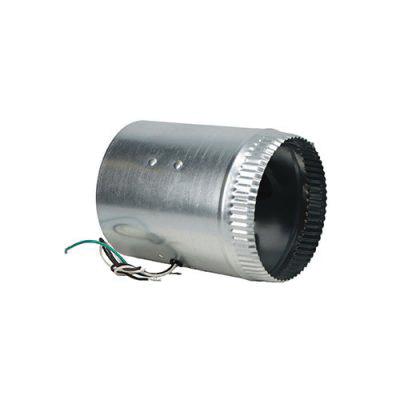

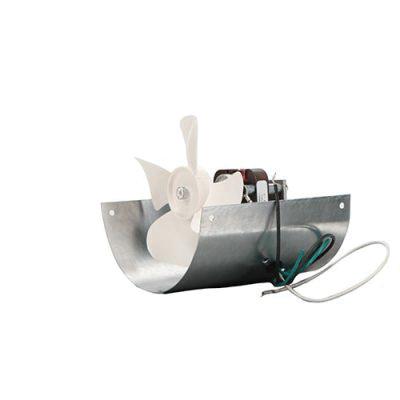

Field Controls Air Booster, 8 in, 0.8 A, 120 V, 60 Hz, 3000 rpm, 45 W, 160 deg F, 8 in L x 7-1/2 in W
- The air booster should be installed in branch ducts serving individual rooms, where proper air flows cannot be achieved
- The air booster is not designed for installation in the main air supply ducts
- Locating the air booster near the outlet end of a problem branch duct will provide the best performance
- The air booster is designed to operate in round metal or flexible type ducts
