| Additional Information | : | 3-Zone |
| Amperage Rating | : | 1.74 A |
| Compressor Type | : | Twin Rotary |
| Connection Type | : | Flared |
| Cooling BTU Rating | : | 28400 Btu/hr |
| Cooling CFM Rating | : | 2239 cfm |
| Cooling Operating Temperature | : | 14 to 115 deg F |
| Cooling Sound Level | : | 56 dBA |
| Drive Type | : | Inverter |
| EER Rating | : | 11.5 |
| Finish | : | Munsell 3Y 7.8/1.1 |
| Frequency Rating | : | 60 Hz |
| HSPF Rating | : | 10 |
| Heating BTU Rating | : | 28600 Btu/hr |
| Heating CFM Rating | : | 2378 cfm |
| Heating Operating Temperature | : | -12 to 75 deg F |
| Heating Sound Level | : | 58 dBA |
| Liquid Line Size | : | 1/4 in |
| Model | : | MXZ |
| Overall Height | : | 31-11/32 in |
| Overall Length | : | 13 in |
| Overall Width | : | 37-13/32 in |
| Phase | : | 1 ph |
| Power Rating | : | 2470 W Cooling, 2395 W Heating |
| Refrigerant Type | : | R-454B |
| SEER Rating | : | 20 |
| Suction Line Size | : | 1/2 in, 3/8 in |
| Voltage Rating | : | 208/230 V |

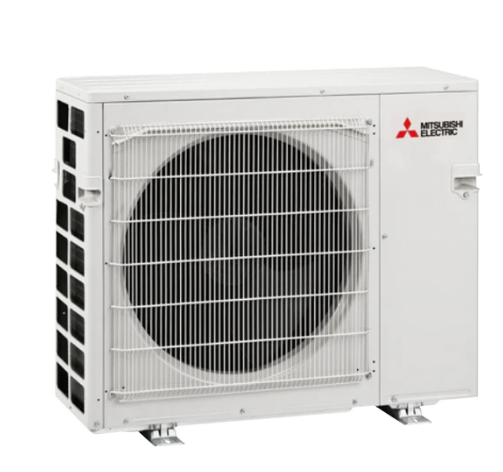

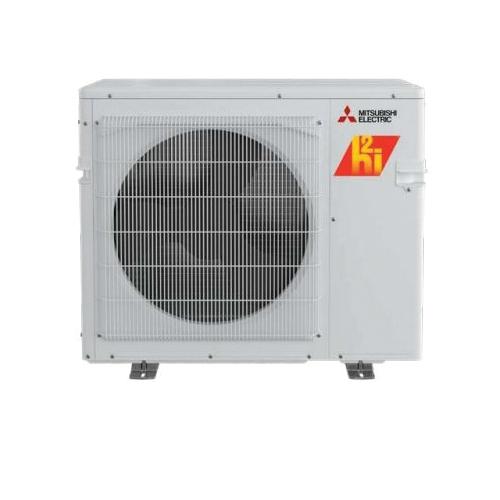

Mitsubishi Electric Multi-Zone Heat Pump Outdoor Unit, 208/230 V, 1.74 A, 2470 W Cooling, 2395 W Heating, 60 Hz, 1 ph, 28600 Btu/hr Heating, 28400 Btu/hr Cooling, 2378 cfm Heating CFM Rating, 2239 cfm Cooling CFM Rating, 11.5 EER Rating, 20 SEER, 10 HSPF, Flared Connection, Twin Rotary Compressor, R-454B Refrigerant, 1/4 in Liquid Line, 1/2 in, 3/8 in Suction Line, Inverter Drive, 58 dBA Heating Sound Level, 56 dBA Cooling Sound Level, Finish: Munsell 3Y 7.8/1.1, -12 to 75 deg F Heating Operating Temperature, 14 to 115 deg F Cooling Operating Temperature, 13 in Overall Length, 37-13/32 in Overall Width, 31-11/32 in Overall Height, 3-Zone
- Built-in base pan heater
- Compressor overcurrent detection
- Compressor thermal protection
- Fan motor overheating/voltage protection
- High pressure protection
- Hyper-Heating INVERTER®: Hyper-heating performance offers 100% heating capacity at 5 deg F and 75% heating capacity at -13 deg F
- INVERTER-driven compressor: An inverter-driven compressor generates the precise capacity needed to maintain a temperature set point
- Quiet operation: Outdoor units are as quiet as a typical conversation, and most indoor units are whisper quiet
- Seacoast protection: Seacoast protection on heat exchanger and base panel (rated for 2,000 hrs. in accordance with ASTM B117 testing)
- Thermal Differential 1 deg F
