| Additional Information | : | Glass-Filled Noryl Impeller Material |
| Amperage Rating | : | 4.9/2.4 A |
| Bearing Type | : | Ball |
| Connection Size | : | 2 in |
| Connection Type | : | NPT Flanged |
| Dimensions | : | 6-3/8 in H x 8-3/4 in W x 5-1/4 in D |
| Enclosure Type | : | Open Drip-Proof |
| Flow Rate | : | 90 gpm |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 1/2 hp |
| Material | : | Iron |
| Maximum Head | : | 46 ft |
| Maximum Pressure | : | 150 psi |
| Motor Speed Rating | : | 3450 rpm |
| Mounting Type | : | In-Line |
| Phase | : | 1 ph |
| Series | : | 2400 Series |
| Temperature Rating | : | 40 to 225 deg F |
| Voltage Rating | : | 115/230 V |

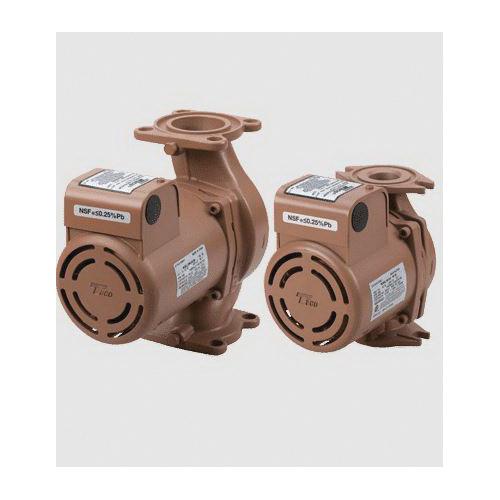

Taco 2400 series high capacity circulators are specifically designed for quiet, efficient, dependable operation in a wide range of medium to high flow/head hydronic heating, chilled water cooling and hot water recirculation applications. The space saving, close-coupled, maintenance free motor with permanently lubricated, sealed-for-life bearings, Noryl impeller and durable, carbon/silicon-carbide mechanical seal provide unmatched reliability. Available in cast iron or stainless steel construction.
Taco Comfort Solutions® Circulator Pump, 2400 Series, 90 gpm Flow Rate, 46 ft Maximum Head, 115/230 V, 4.9/2.4 A, 60 Hz, 150 psi Maximum Pressure, 3450 rpm Motor Speed Rating, 1/2 hp, 2 in Connection, NPT Flanged Connection, 1 ph Phase, In-Line Mounting, 40 to 225 deg F, Open Drip-Proof Enclosure, Ball Bearing, Iron, 6-3/8 in H x 8-3/4 in W x 5-1/4 in D, Additional Information: Glass-Filled Noryl Impeller Material
- Compact, space saving design
- Powerful close coupled, maintenance free motor
- Superior efficiency, high starting torque
- Permanently lubricated, sealed for life bearings
- Rugged 1/2 in stainless steel shaft
- Carbon/silicon-carbide mechanical seal for long life
- Universal flange to flange dimensions
- Anti-condensate design for chilled water
- Dual electrical knock-outs
- Dual pressure taps, suction/discharge
