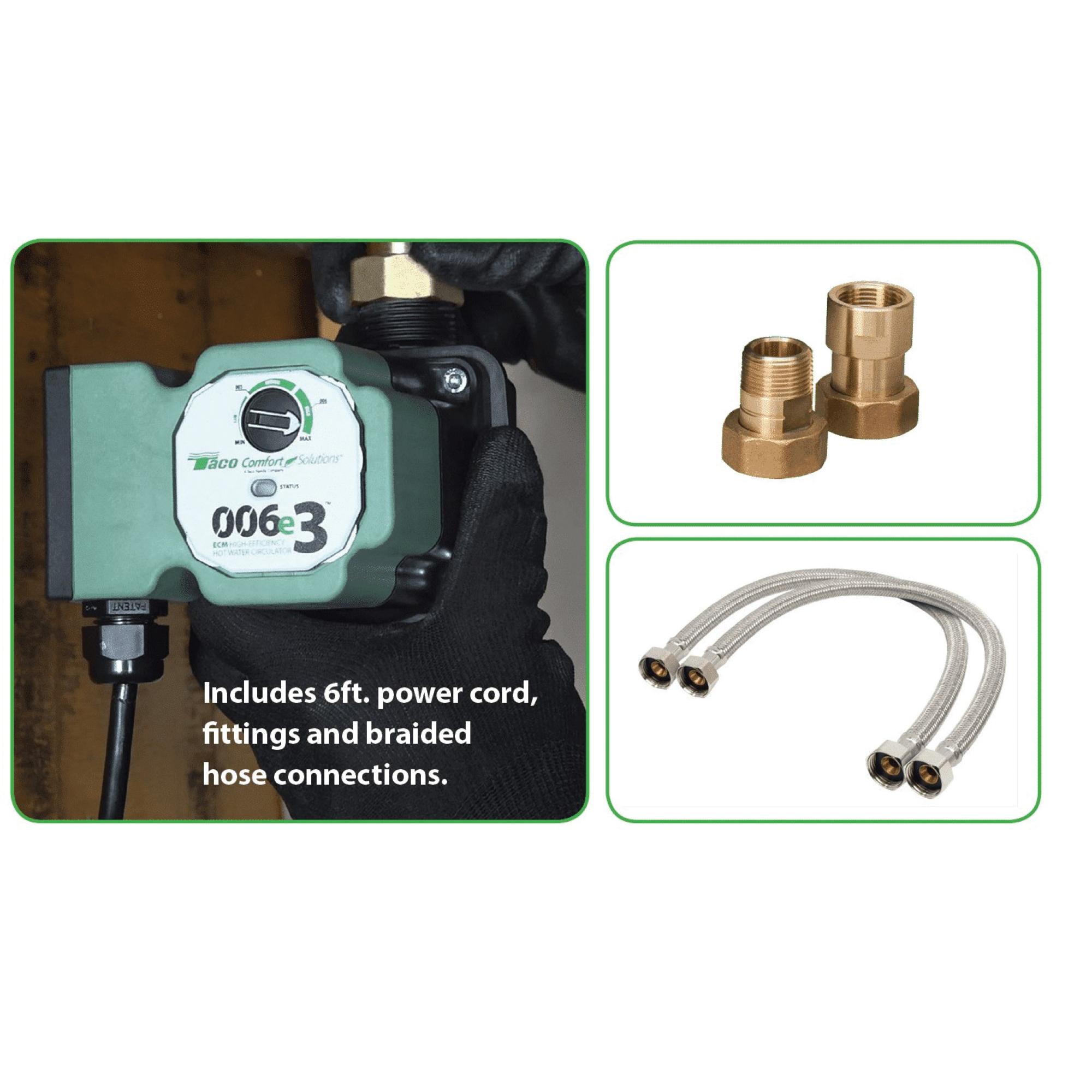

| Additional Information | : | 6 ft L Cord, ECM, Permanent Magnet, Thermally Protected Motor, Composite Impeller Material |
| Amperage Rating | : | 0.54 A |
| Connection Size | : | 3/4 in |
| Connection Type | : | NPT |
| Dimensions | : | 5-1/8 in L x 5-1/2 in W x 4-7/8 in D |
| Flow Rate | : | 11 gpm |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 1/40 hp |
| Material | : | Composite |
| Maximum Head | : | 13 ft |
| Maximum Pressure | : | 150 psi |
| Motor Speed Rating | : | 1440 to 3720 rpm |
| Phase | : | 1 ph |
| Power Rating | : | 44 W |
| Temperature Rating | : | 36 to 230 deg F |
| Voltage Rating | : | 120 VAC |

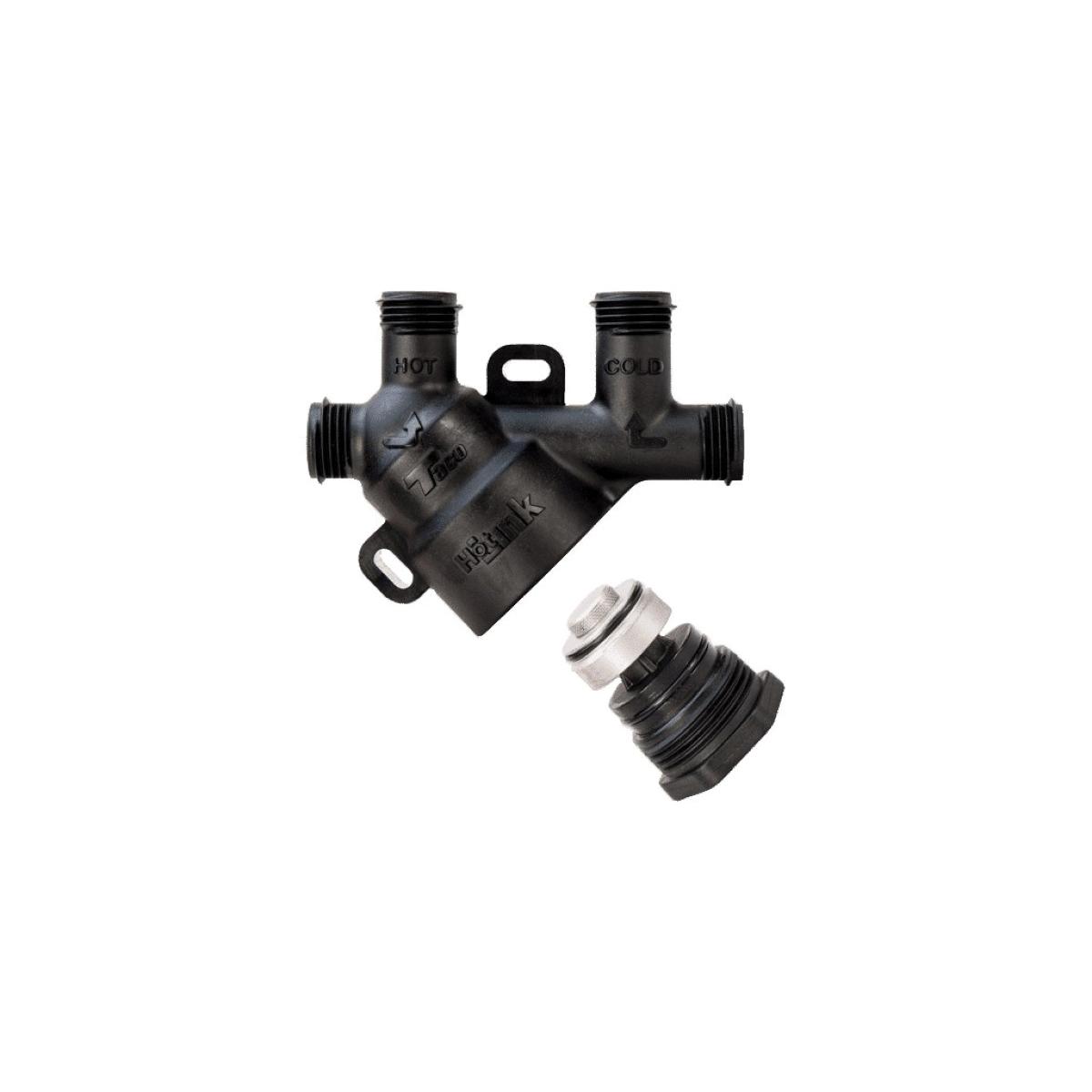

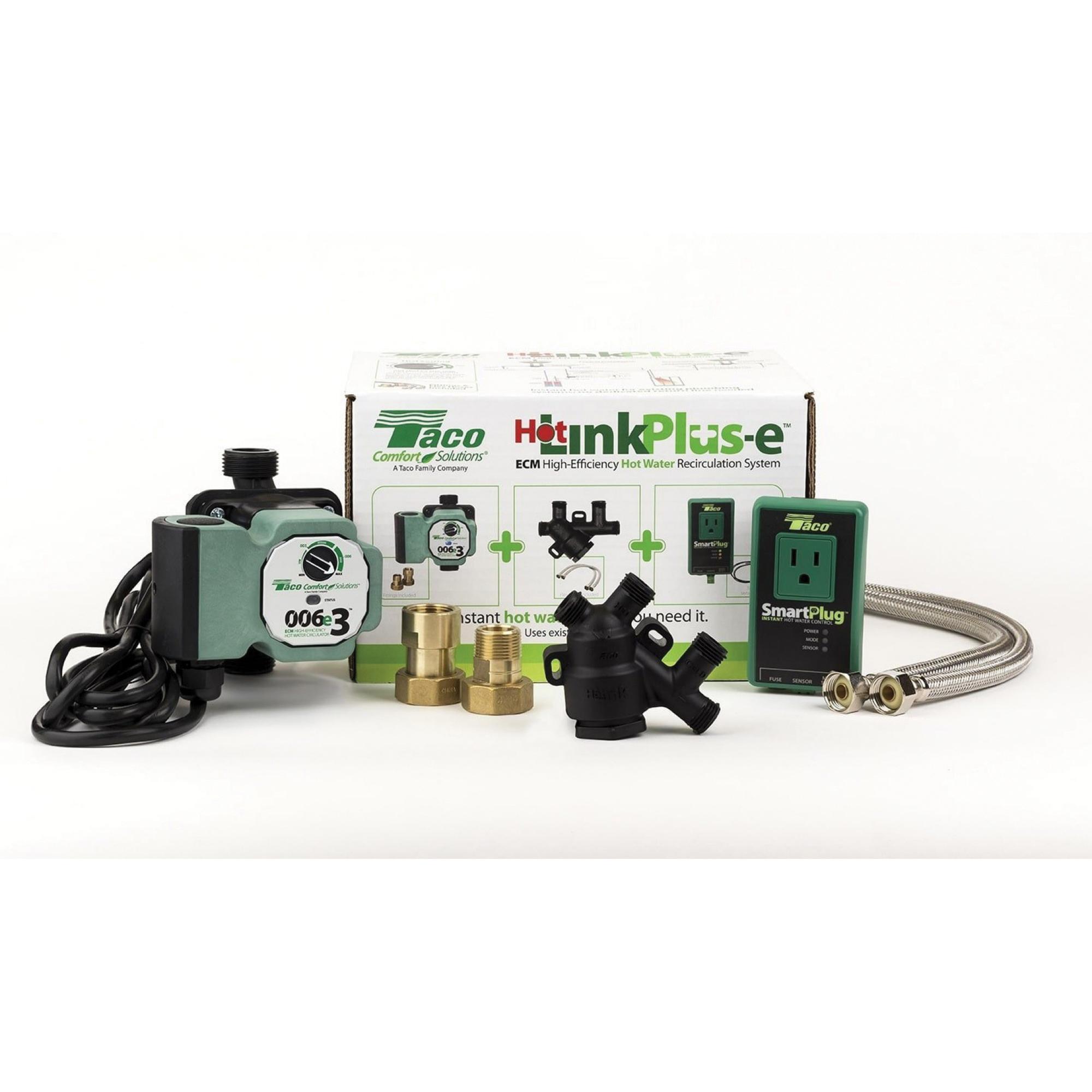

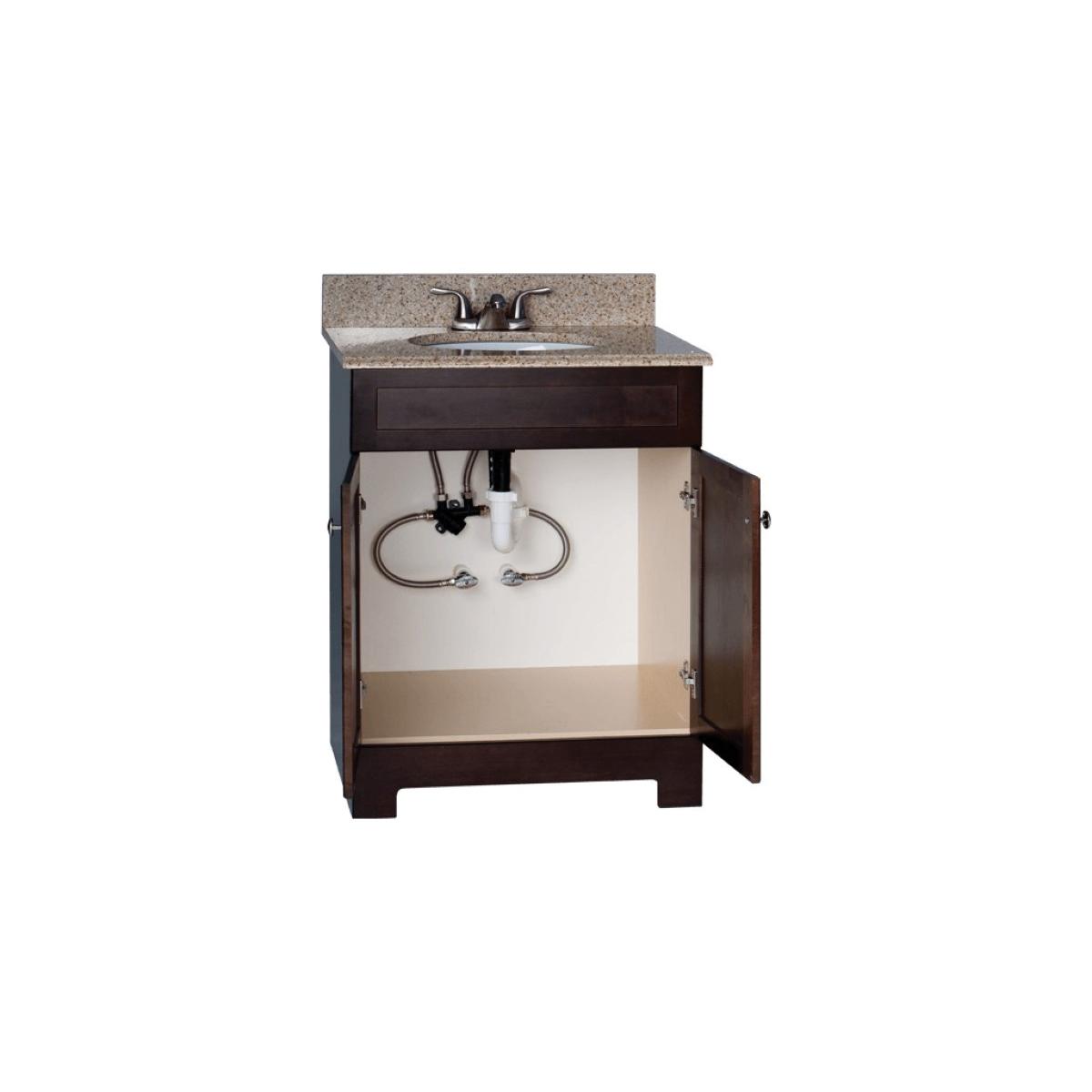

Taco Hot-LinkPlus-e® ECM high-efficiency instant hot water system combines the easy-to-install Hot-Link® valve with the 006e3® hot water circulation pump and the award winning SmartPlug instant hot water control. The Hot-LinkPlus-e® ECM high-efficiency instant hot water system provides hot water on demand while maximizing energy savings. Using existing plumbing with a tank water heater, no dedicated hot water return line is needed.
Taco Comfort Solutions® High-Efficiency Instant Hot Water System, 11 gpm Flow Rate, 13 ft Maximum Head, 44 W, 120 VAC, 0.54 A, 60 Hz, 150 psi Maximum Pressure, 1440 to 3720 rpm Motor Speed Rating, 1/40 hp, 3/4 in Connection, NPT Connection, 1 ph Phase, 36 to 230 deg F, Composite, 5-1/8 in L x 5-1/2 in W x 4-7/8 in D, Additional Information: 6 ft L Cord, ECM, Permanent Magnet, Thermally Protected Motor, Composite Impeller Material
- Easy-to-use dial - low, medium, high - 003 and 006 performance, point references
- Easy installation compact design for tight spaces
- High-efficiency ECM motor uses up to 85% less electricity
- SureStart® a Taco exclusive feature, is your no-callback safety net, it automatically purges air and unblocks the pump to keep it trouble-free
- Whisper quiet operation
- Double insulated, no ground wire required
